Sketch

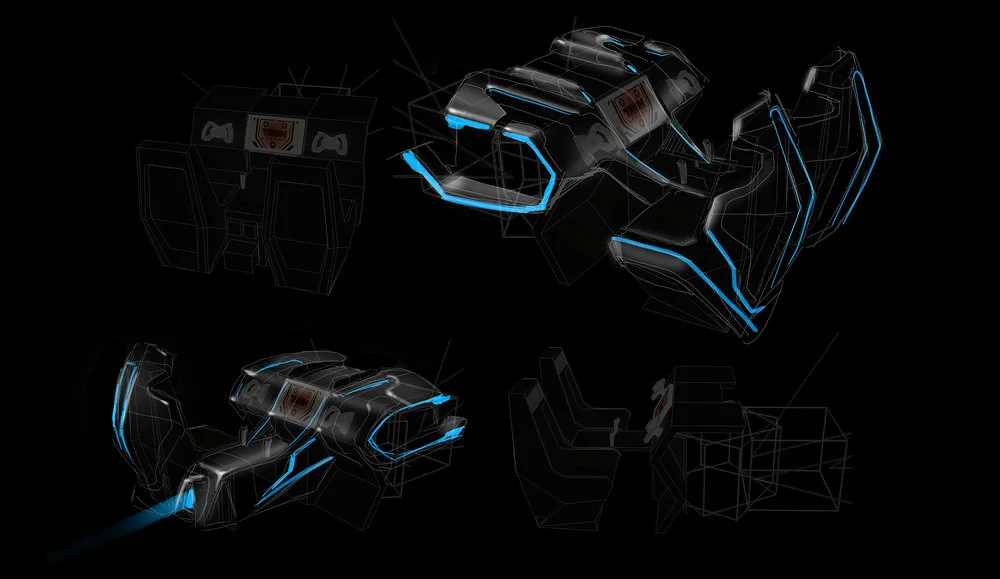

Form factor exploration: A series of key sketches were done to explore the look and feel of the simulator.

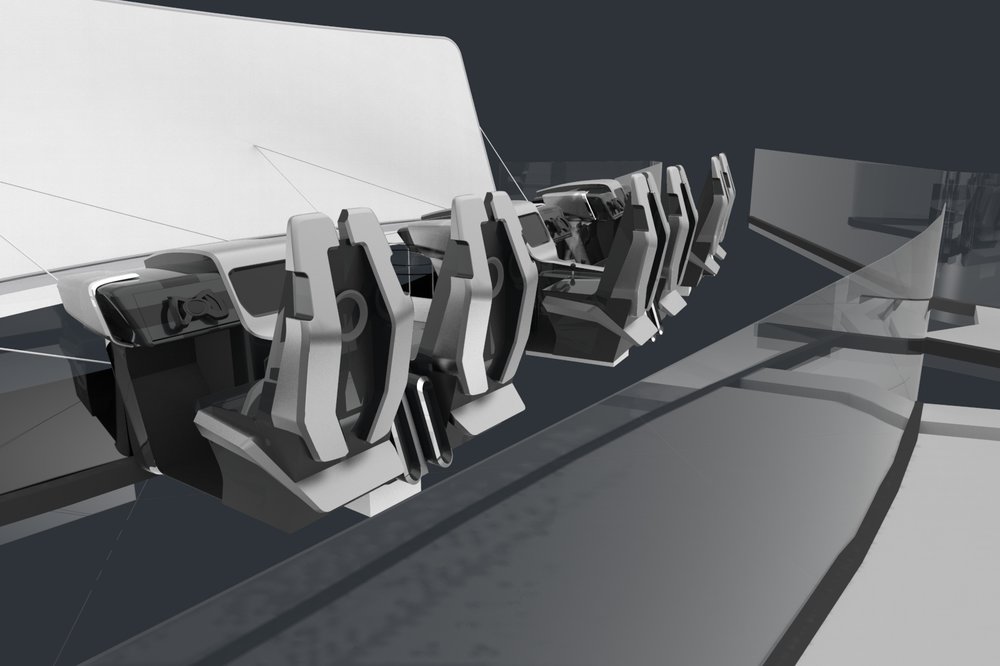

3D Modeling

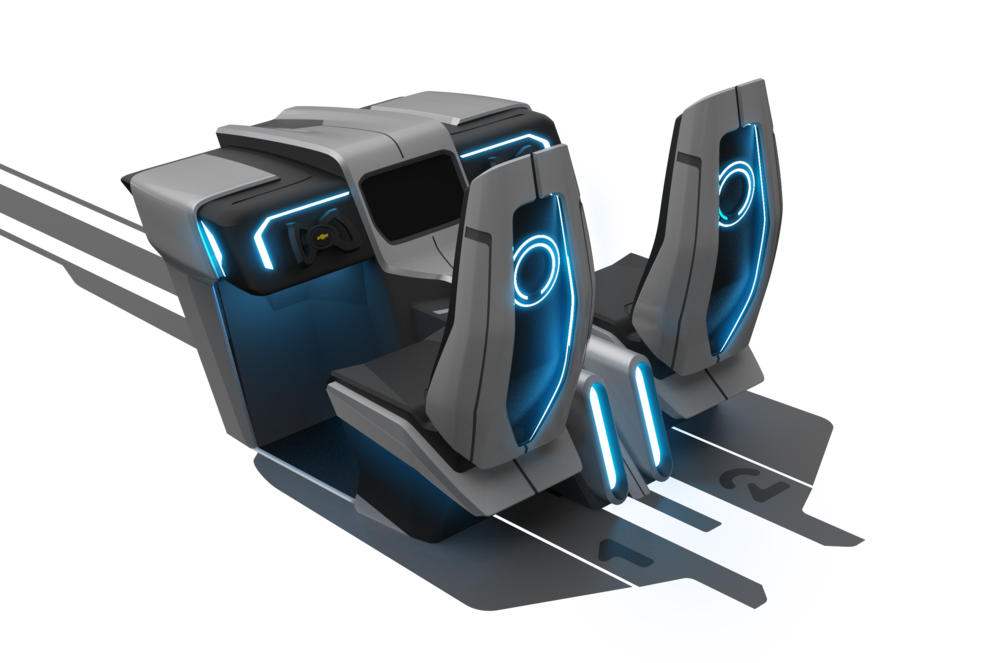

Even when a design was finalised in 2D, it was not until the design was translated into 3D where a few more rounds of revisions were needed to fine tune the design.

Fabrication Process

Each and every single panels were painstakingly designed and engineered so that OEM parts and electronics can fit perfectly in the simulator. On top of that, the design had to be ergonomic, child friendly, resistant to wear and tear. With all things considered, the final design was able to meet these objectives while looking aesthetically pleasing.


For the racing simulator please skip to 3:47 mark.
